Soundhole Reinforcement & Backstrip

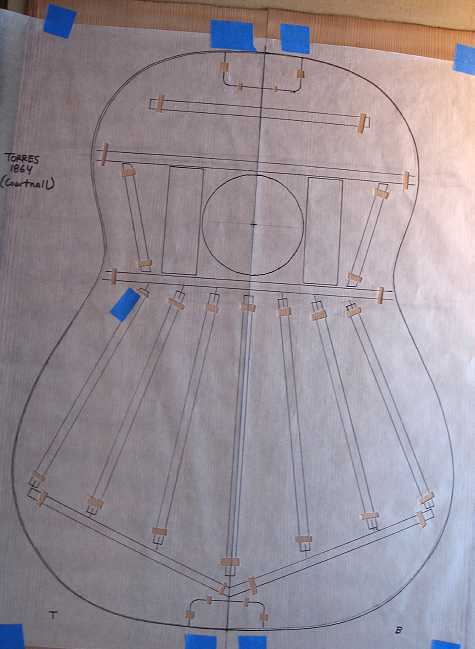

Tuesday, July 24th, 2007: With the rosette inlaid and the top thickness-sanded to about 3mm, I could now begin working on the bracing for the top. Here I have placed my bracing plan over the top, to mark the positions of the braces.

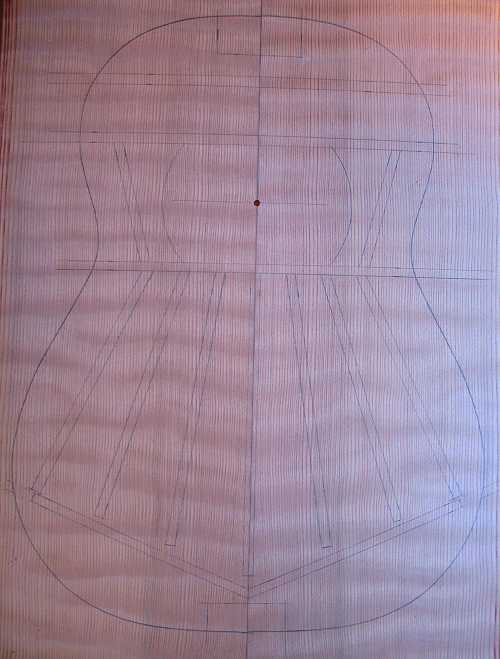

Here's the top with the bracing plan marked out. Notice that I am deviating from the original plan's two soundhole reinforcement braces, in favor of a soundhole reinforcement "donut" instead. I don't know --- I just like the additional sturdiness that a soundhole donut gives.

INDEX: Return to HOME PAGE Planning Joining the Plates Thicknessing the Plates Bending Form & Mold The Rosette Soundhole Reinforcement and Backstrip Bracing The Sides Closing the Box Binding The Neck Finishing The Final Steps

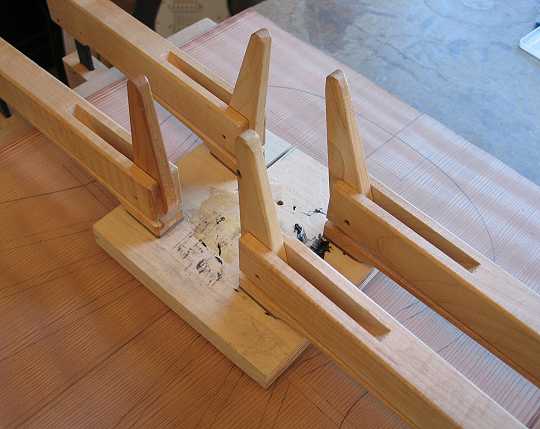

In much the same way that I had clamped the glued rosette down, I am here clamping the spruce soundhole reinforcement piece.   Previous Page   Next Page

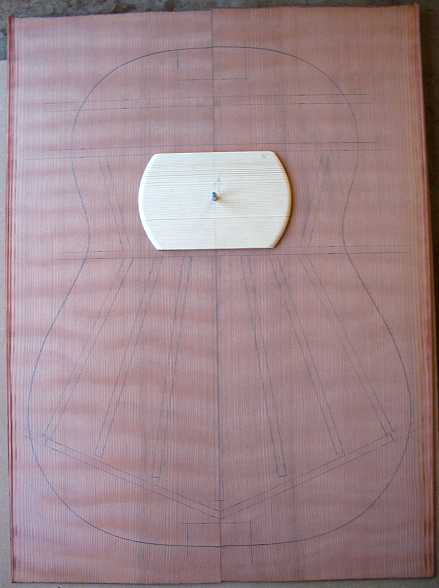

Here it is, after I have removed the clamps. Later, I will rout out the soundhole and complete the shaping of the "donut" ring, to come out something like this.
