Soundhole Reinforcement & Backstrip (Continued)

While the soundhole reinforcement was clamped up, I routed for the backstrip inlay. I am using one of my bloodwood binding pieces, with a black/white purfling strip on each side, for my backstrip. I first routed the two outer sides of the channel (a tiny bit narrower than their final dimensions, so I could "fine-tune" the fit later), then routed out the middle. I used, once again, my 1/16" downcut spiral bit in the Dremel, for its cleaner cut. Then I put strips of masking tape, one at a time, to widen the channel to just fit the backstrip.





INDEX:

Return to HOME PAGE

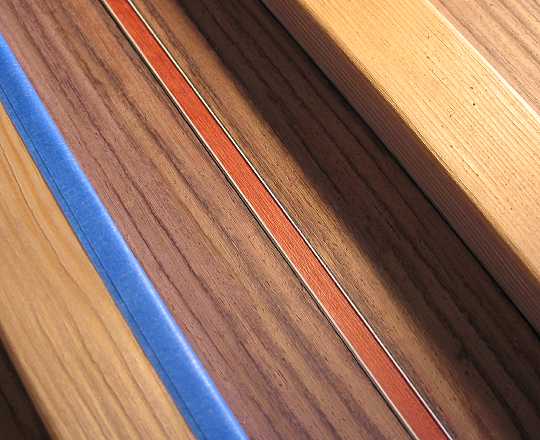

Here I'm checking the fit of the backstrip. It fits well!!!

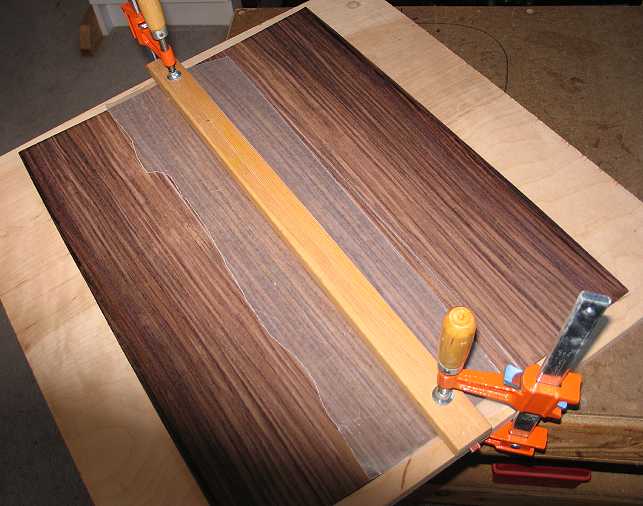

After gluing the strip in with Titebond, I've clamped it down.

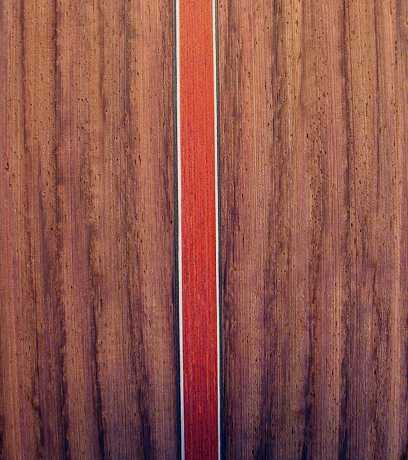

After an hour or so, I scraped and then thickness-sanded the back to about 2.2mm thick. Here's a close-up of the backstrip:



Previous Page

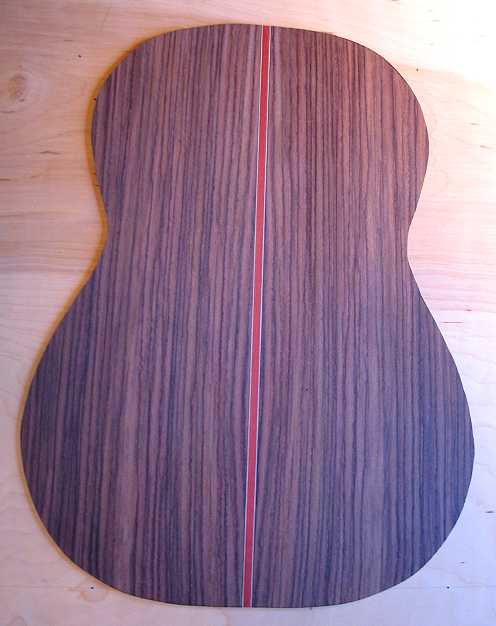

Here is the bandsawn back plate:
